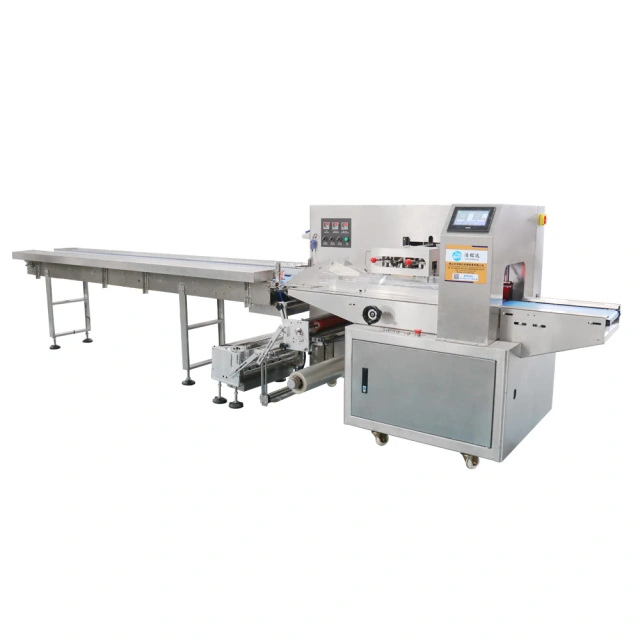

VEGETABLE PILLOW WRAPPING MACHINE
Suitable for the packaging of all types of leafy vegetables, fruits and vegetables and other agricultural and sideline products.
CHARACTERISTIC AND ADVANTAGE
- Unlimited packaging lengths, automatic recognition of product lengths using advanced fibre optic sensors, automatic bag sealing and cutting, perforation possible.
- No need to fix the placement of the product, automatic recognition of the packaging distance by the sensor.
- servo-controlled feed and travel structure, infinitely variable speed function, simpler operation.
- The control is programmable and can be upgraded to increase the control points according to the user’s needs.
PRODUCT PARAMETERS
| Model | HMD 450X-600X | HMD 700X-800X | HMD 900X-1000X | HMD 1100X-1200X |
|---|---|---|---|---|
| Film width | Max 450-600mm | Max 700-800mm | Max 900-1000mm | Max 1100-1200mm |
| Bag length | 120-unlimited length | 120-unlimited length | 120-unlimited length | 120-unlimited length |
| Bag width | Max 210-280mm | Max 330-380mm | Max 430-480mm | Max 530-580mm |
| Product height | Max 120-140mm | Max 100mm | Max 100mm | Max 100mm |
| Film roll diameter | Max 320mm | Max 320mm | Max 320mm | Max 320mm |
| Packing speed | 20-40 bags/min | 40-80 bags/min | 10-30 bags/min | 10-20 bags/min |
| Power | 4.7-4.9kw | 5-5.4kw | 5.6-5.8kw | 6.2-6.5kw |
| Machine weight | 680-760kg | 820-890kg | 1000-1700kg | 2400-3100kg |
| Optional device | Date code machine, Gas-filling device, Filling device, Sorting machine | |||
| Packing material | For example single-layer heat sealing BOPP or composite film such as OPP composite PE, PET composite PEF | |||
| Bag type | Pillow bag Package (Hanging Hole Round Hole / Butterfly Hole can be Customized) | |||
| Horizontal sealing / Blade grain | Cutter edge serrated/flat edge plus V easy tear | |||
20+ years of experience
Support OEM/ODM,we are a professional packaging machine factory.
- Cost-Effective Pricing
- Reliable Partnership
- Expert Solutions
- Superior Quality Assurance
- Comprehensive Service
- Delivered Globally
The most comprehensive range of packaging machines categories.
PACKAGING MACHINES BUILT FOR THESE INDUSTRY
CEREAL&NUTS
BICUITS&COOKIES
POWDER
PUFFED FOOD
STICK PACKAGE
SUGAR
VEGETABLE&FRUIT
SCREW
CANDY
LIQUID
MEDICAL
OIL
Trusted Packaging Machine Supplier
Customized Solutions
We understand that every business is unique, which is why we invest the effort to learn your specific requirement and customize our services. Our solutions aim to optimize your packaging process, reduce waste, and increase efficiency.
Ongoing Support
Our commitment to your success doesn’t end once the machinery is installed. We offer continuous maintenance and support, guaranteeing the optimization and efficiency of your packaging process.
Expert Advice
Our seasoned experts are always on hand to offer guidance and assistance. Whether you need help with a specific issue or want to explore new packaging options, we’re here to help.
Innovative Solutions
Our devoted team of experienced engineers and designers is focused on developing creative and adaptable packaging solutions that perfectly match our customers’ individual needs. We work closely with our clients to develop machines that are efficient, reliable, and cost-effective.

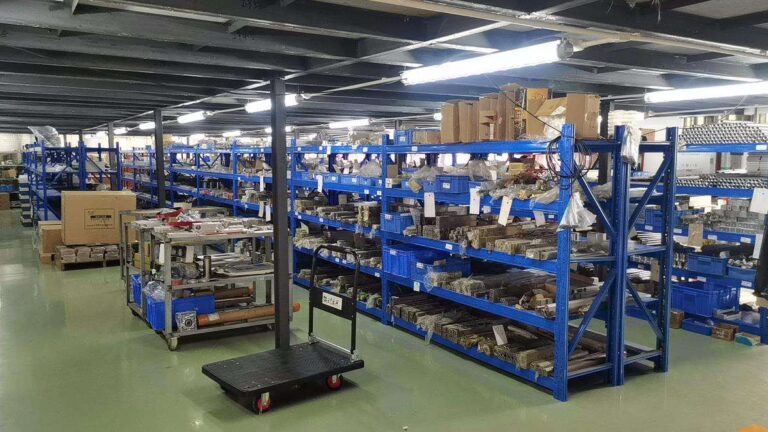

Quality Manufacturing
