Leading Manufacturer of Packaging Machine

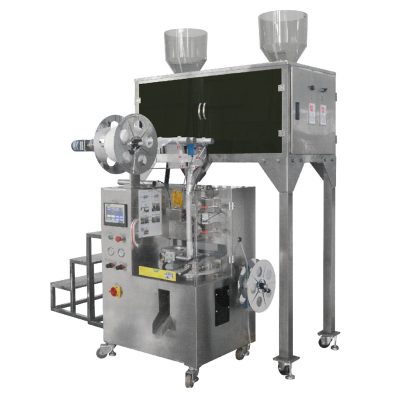

ZE-PYRAMID TEA BAG PACKING MACHINE-WEIGHER METERING
Suitable for the green tea,black tea,scented tea,coffee,Chinese tea,health tea,herbal tea,gran-
ule and so on.
CHARACTERISTIC AND ADVANTAGE
- Machine can automatic do whole process of feeding, pyramid bag forming, weighingproduct by volume system, filling, sealing and cutting.
- Adopting ultrasonic sealing system for better flat bag or triangle bag shaping.
- Adjustable volumetric cups for users easy to change differnt weight size.
- With HlM and PLC control system enable machine stable performance and easy.
- Three servo motors are used to control the feeding, filming and sealing.
- With seryo functions, machine can do no proguct no bae makine, Meanwhile machine can sense product eneth to make bag leneth accordingly.
PRODUCT PARAMETERS
Model | ZE-P180W2 |
|---|---|
| Packing speed | 15~30 bags/min |
| Weigher system | Volumetric cups |
| Measuring range | 1-7g/ bag |
| Roll film width | 120/140/160mm |
| Film material | Nylon, non-woven, PLA corn material, ect. |
| Film roll inner diameter | Ф76mm |
| Film roll outer diameter | <Ф400mm |
| Seal method | Ultrasonic sealing system |
| Air pressure | >0.6Mpa |
| Power | 220V 50/60Hz,3KW. |
| Size | (L)800x(W)700x(H)2000mm |
| Weight | 530KG |
20+ years of experience
Support OEM/ODM,we are a professional packaging machine factory.
- Cost-Effective Pricing
- Reliable Partnership
- Expert Solutions
- Superior Quality Assurance
- Comprehensive Service
- Delivered Globally
The most comprehensive range of packaging machines categories.
PACKAGING MACHINES BUILT FOR THESE INDUSTRY
CEREAL&NUTS
BICUITS&COOKIES
POWDER
PUFFED FOOD
STICK PACKAGE
SUGAR
VEGETABLE&FRUIT
SCREW
CANDY
LIQUID
MEDICAL
OIL
Trusted Packaging Machine Supplier
Customized Solutions
We understand that every business is unique, which is why we invest the effort to learn your specific requirement and customize our services. Our solutions aim to optimize your packaging process, reduce waste, and increase efficiency.
Ongoing Support
Our commitment to your success doesn’t end once the machinery is installed. We offer continuous maintenance and support, guaranteeing the optimization and efficiency of your packaging process.
Expert Advice
Our seasoned experts are always on hand to offer guidance and assistance. Whether you need help with a specific issue or want to explore new packaging options, we’re here to help.
Innovative Solutions
Our devoted team of experienced engineers and designers is focused on developing creative and adaptable packaging solutions that perfectly match our customers’ individual needs. We work closely with our clients to develop machines that are efficient, reliable, and cost-effective.
Quality Manufacturing
Our manufacturing facilities use only top-quality materials and advanced technology to produce our packaging machines. Our rigorous quality control measures ensure that every machine we produce meets or exceeds industry standards.
process of manufacturing Packaging Machine
1. Design
Designing the machine based on customer requirements and industry standards. This includes detailed drawings and specifications for every component.
2. Fabrication
Once the design is complete, the machine’s parts are made using cutting, welding, and machining. This involves using high-quality materials such as stainless steel and aluminum.
3. Assembly
The fabricated components are then assembled to create the complete vertical form fill seal machine. This includes installing the film roll holder, film forming section, filling station, sealing section, cutting section, and control system.
4. Testing
Once the machine is fully assembled, it is put through a rigorous testing process. Make sure it meets the specified performance criteria. Such as testing the machine’s speed, accuracy, and reliability under various operating conditions.
5. Installation
After the machine testing, it is installed at the customer’s facility. Configuring the machine to work with the customer’s specific packaging requirements. Training the customer’s operators on how to use the machine.
Start customizing your unique packaging machine today!
