Leading Manufacturer of Packaging Machine

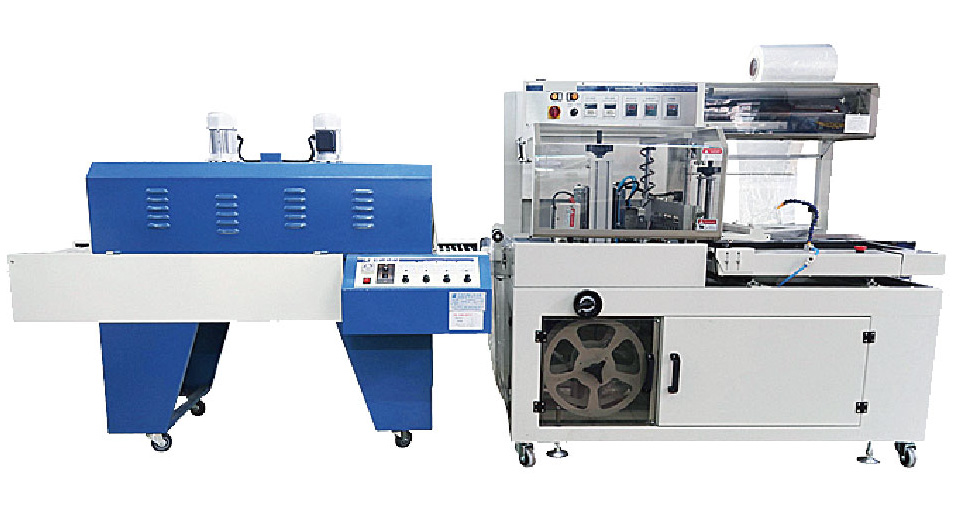

ZES-160 INCREASE THE GRANULE PACKAGING MACHINE
Used in paper boxes, toy,electronic appliances, stationery, books, music, metal, wood, building materals, aluminum, daly necesities, medicine, beverape, cosmetic chemical industry, handicraft, tags and other products.
CHARACTERISTIC AND ADVANTAGE
- L type sealing machine:
- Automatic sealing machine and shrink packaging unit to automatic production line,improve work efficency.
- Teflon coated aluminum alloy sealing knife,anti-sticking knife,high temperature resistance,strong sealing line,sealing andcutting non-coking smoke,zero pollution,sealing and cutting knife protection board with high quality alloy steel is not easy to deform.
- The protection function of the anti-error cutting prevents the accidental cutting of products and the safety ofthe operator.
- The electric element adopts the omron relay to ensure thr long and stable operation of the machine.
- Use the cylinder to push the seal cutting knife,ensure the sealing and cutting smoothly,and improve the stability.
- Automatic membrance feeding system,which is quickly responded by the proximity swtich and informs the delivery motor to controlthe automatic delivery of thrmembrane.
- Automatic feeding device,put thr packaging material into the converyor belt,and automatically cover the film seal and deliver it to the shrinking machine.
- The bracket of the supporting film is composed of two thick aluminum magnesium alloy rollers,which can carry a heavy shrink-wrap and easy to change thr film.
- When the package size is changed,only thr height and width can be adjusted easily without replacing the mould and bag maker.
- The waste automatic recovery system is controlled by the induction awitch and the motor to control the automatic recycling waste.
- Heat-shrinkable packaging machine:
- Adopting advanced sprial wind technology,the wind is stronger,and the heating effect is better.
- Use the far infrared heating tube to transfer the heat directly to the sureface of thr shrink film,and the shrinkage efficiency is excellent.
- Electronic speed regulating motor,stepless speed regulation,large speed adjustment range.
- The glass fiber sleve is used,which dose not show mucosal or casing deformation.
- The conveyor roller will roll with constant speed and continuous rolling with the conveyor belt,so as to solve the problem of hard shrinkage at the bottom.
- High precision temperature controller is adopted to control the temperature more accurately.
- Using the advanced laser cutting and CNC bending sheet mateal processing technology,the machine box is beautiful and firm.
PRODUCT PARAMETERS
Model | ZE-LS450 | ZE-LS550 |
|---|---|---|
| Max.height | Max. 150 mm | Max. 150 mm |
| Sealing Length | Unlimited length | Unlimited length |
| Sealing Width | 450mm | 550mm |
| Speed | 0~25bag/min | 0~25bag/min |
| Voltage | 220V 50/1.35kw | 220V 50/1.35kw |
| Pressure | 0.5~0.8Mpa | 0.5~0.8Mpa |
| Packing Material | POF | POF |
| Belt Width | 330mm | 430mm |
| Loading weight | Max.20KG | Max.20KG |
| Machine Size | (L)1640*(W)920*(H)1420mm | (L)1640*(W)1020*(H)1420mm |
Name | Shrink Tunnel |
|---|---|
| Tunnel | 1200*400*200mm |
| Total Length | 1700mm |
| Fan | 2 |
| Speed | 0~10m/min |
| Voltage | 380V 50/12kw |
| Heating | Quartz tube |
| Packing Material | POF、PVC |
| Conveyor belt | Steel roll |
| Loading weight | 10KG |
| Machine Size | (L)1700*(W)770*(H)1270mm |
